Sharpening Machines – Kaindl

Models: SSG600-M-LF SSG600-A-DC RMS-NC & Tool Sharpening Center SZ

SSG 600-M-LF
Circular Saw Sharpening Machine

The manual saw blade sharpening machine with linear feed.
Perfect sharpening combined with simplest handling.
.For saw blades from Ø 100 to 600 mm.

table version
from Ø 100 mm to 600 mm
precise re-sharpening of face of tooth and tooth back
suited for:
alternating teeth
flat teeth
step teeth
trapezoid teeth
SSG 600
SSG 600-A DC
Circular Saw Sharpening Machine
Automatic saw blade grinding machine with electro-pneumatic digital control. The new version of the well-known KAINDL saw blade grinding machine has digital controls for even simpler and safer operation. As an additional highlight, the new version has a new adjustable pneumatic braking unit. A self-explanatory display allows all possible settings to be made:

Number of teeth
alternate tooth transport
display settings
grind and transport time
automatic program stop
machine diagnosis etc.
suited for:
alternating teeth
flat teeth
step teeth
trapezoid teeth
SSG 600
SSG600 A

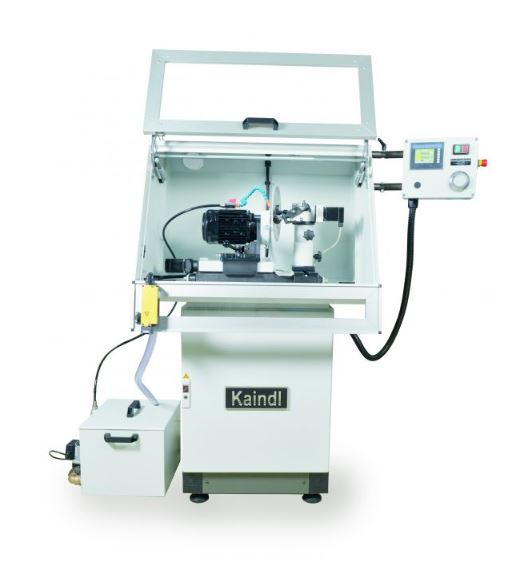

Circular Knife Sharpening Machine

The circular knife sharpening machine RMS-NC for circular knives from Ø 100 to 400 mm. Intuitive control by touchscreen and electronic jog wheel.

made for circular knives from Ø 100 – 400 mm (smaller diameters upon request)
programmable zero point offset
input of feeding and pause steps
step less adjustment of revolutions of the circular knife
burr-free sharpening
sparking time mode
Compact drill and universal grinding machine with adjustable magnet clamping table

grinding table with electromagnetic tension – thereby universally applicable. Safe clamping and sharpening of turning steel, turret plates, plane measurers, chisels and other tool forms. The grinding table is equipped with a precision circulating ball guidance. Therefore high precision and longevity is guaranteed!

The integrated drill grinding machine BSM 20 has a clamping range from 1mm to 20mm quick and simple handling by our proven patented reversing prism system that guarantees the highest possible accuracy and cutting edge symmetry!

sharpens twist drills, step drills, sheet metal drills, wood drills, two edged drills, from HSS and tungsten carbide (also special forms)

universally usable
precise clamping and grinding of the work piece
steppless adjustable grinding table with permanent magnet
travel range of grinding table 300 mm
sharpens twist drills from Ø 2 – 20 mm
Sharpening Center SZ
