Currently Available: Businaro Micron 650 Wagner LT HSS Saw Grinder Kaindl FSM-CNC Tool & Universal Cutter Grinder
Cross traverse and depth of slots established using precise mechanical adjustments.
High frequency electrospindle with totally adjustable electronic speed.
Low air consumption and automatic shutdown of completion of operation. Simple maintenance.
make us an offer !

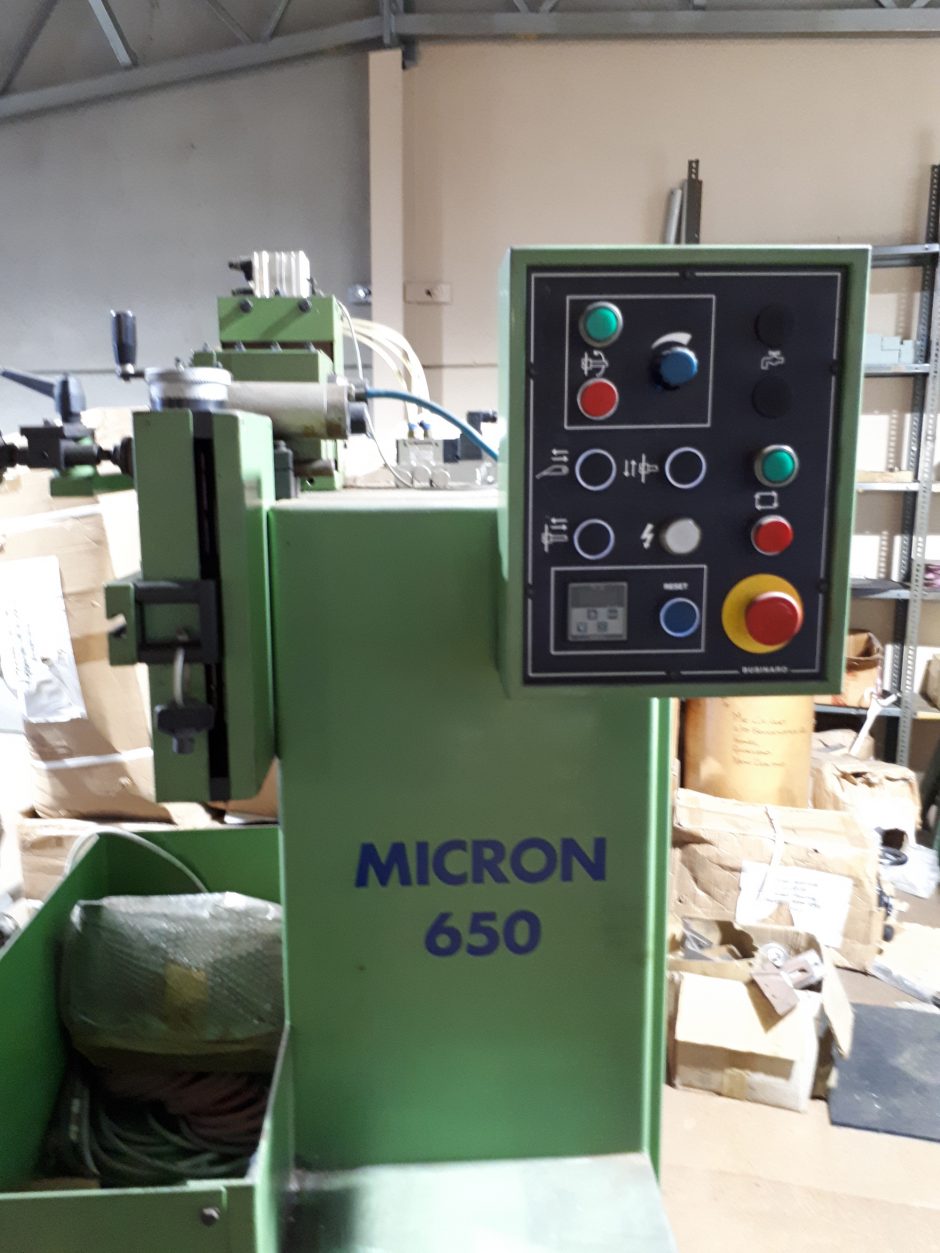

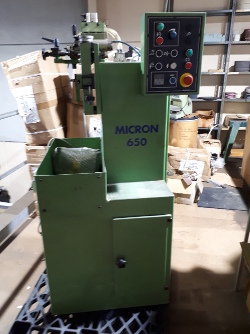

Businaro Micron 650
for HSS & Circular Saw Blades
Demonstration Model
Takes Diameter: 140mm-630mm
Machine Weight: 275kg – Dimensions: 740 x 720 x 1510mm
Grinding of chip breaker slots completed in single pass.
HSS Grinder
Make an offer !

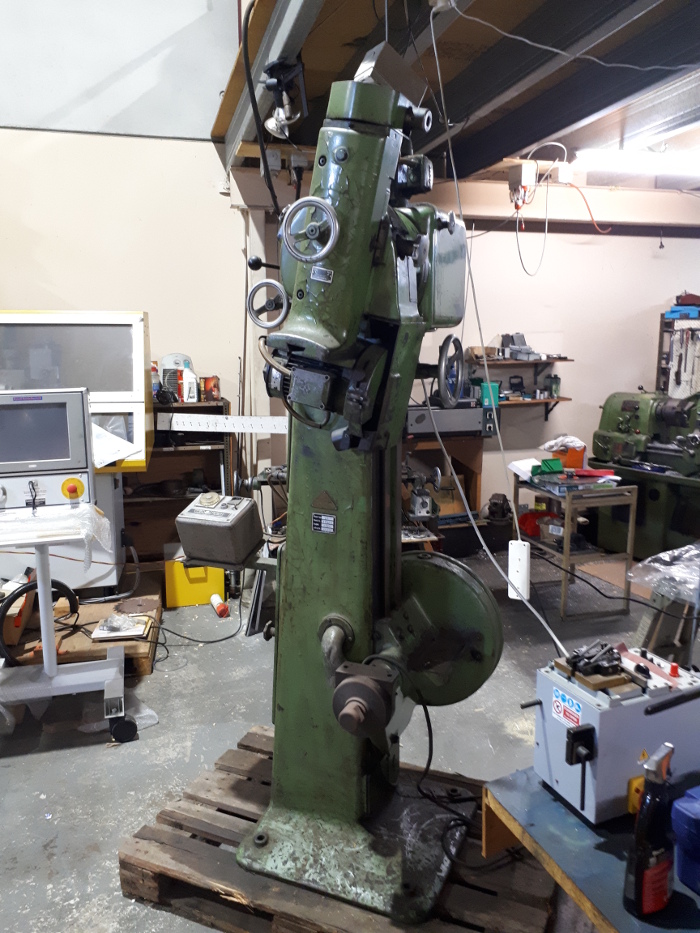

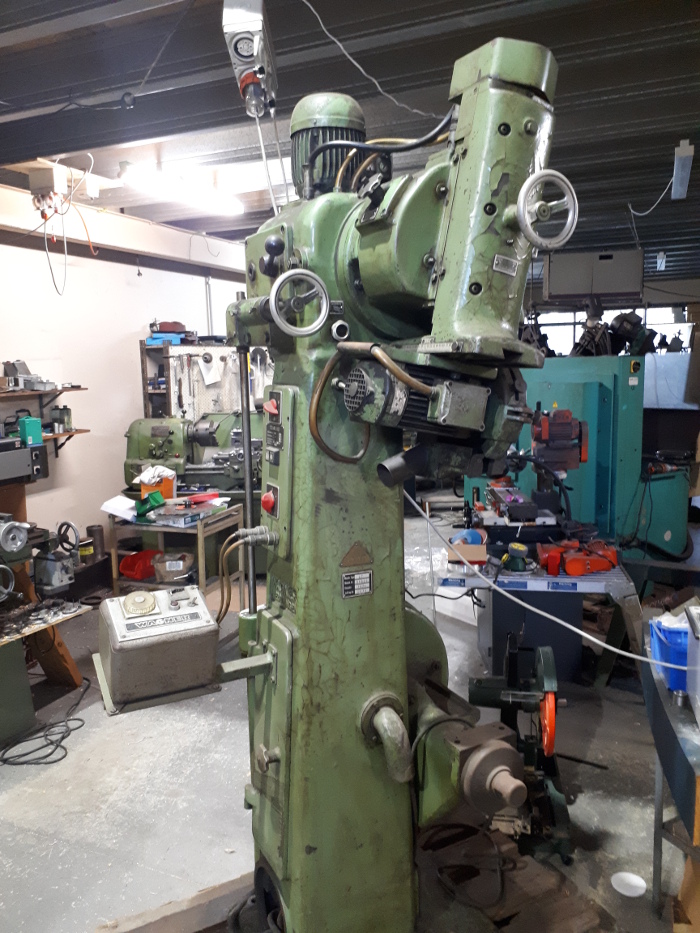

This automatic machine, featuring a 4-speed indexing drive, will accurately grind any standard
number of teeth from 20 to 672, without use of costly index plates. Wheel and indexing strokes
for generating the tooth form are cam controlled. The grinding head swivels to permit easy
rake angle settings from 0º to 30º. This model will accurately & effectively grind the correct
tooth form on all metal cutting circular saw blades and has been extended to sharpen blades
up to 1350mm diameter, and tooth pitches from 3/16” to 2-1/4”. All components are driven by
separate totally enclosed motors.
• Sturdy construction with precision bearings used throughout.
• Long dovetailed guideways with adjustable gibs for the grinding head.
• Convenient controls permit quick adjustment for accurate grinding of desired tooth form.
Designed for accurately grinding either the triple chip or alternate bevel tooth form.
• Ideal for generating the tooth form for friction saw blades.
• Totally enclosed gear transmission with four indexing speeds of 25, 51, 38 and 78 strokes
per minute.
• Automatic lubrication for gears and cams.
• No electric exhauster for dust extraction included.
• Grinding wheel widths can range from 1/8” to 1-1/8”. Minimum blade center hole is 1-1/8”,
maximum without special clamp flanges is 4-1/2”.
• Two electric motors 230v 3 phase:
1 – grinding spindle motor, 1.7 hp, 3600 RPM
1 – 2-speed indexing motor, 1/0.5 hp, 1800/900 RPM
• Electric control for all motors, wrenches and guards, including one grinding wheel (9”
diameter), one blade centering ring, an instruction book, and a standard set of gears.

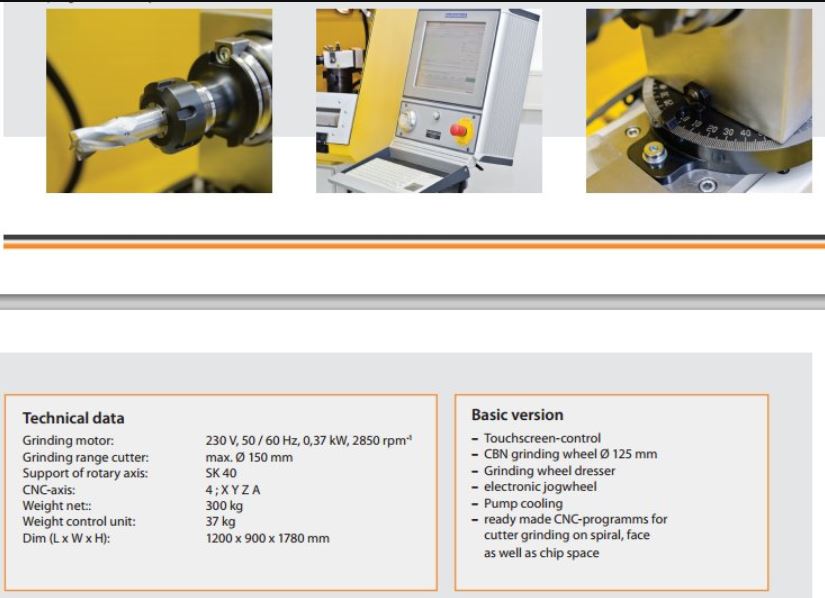

FSM-CNC
This machine is equipped with a high-performance PC with touchscreen and digital jogwheel.
This PC controls three linear and a rotary axis simultaneously.
The geometry of grinding is flexibly programmable by G-code.SK 40 support with ER collets for cutters up to Ø 150 mm, cutter grinding on face, spiral, as well as chip sparebuilt on steady IPC base,free programmable with G-codebased on the solid Linux Ubuntuelectronic jogwheel
Make us an offer !
